Pre-Galvanized Steel Pipe for Indonesia: 2026 B2B Buying Guide

Last updated: 2026-10-07 · Sino East Steel Technical Team

Pre-galvanized steel pipe is a welded pipe formed from steel strip or coil that was already zinc-coated before the pipe was made. Instead of dipping a finished pipe into molten zinc, the mill galvanizes the flat steel first, slits it to width, then roll-forms and welds it into tube — which is why the zinc on a pre-galvanized pipe covers the outside and inside surfaces evenly but stays thin, normally Z60 to Z275 (60–275 g/m² total both sides) per EN 10346.

That single manufacturing detail explains almost every commercial question Indonesian buyers ask us: why pre-galvanized pipe costs noticeably less per meter than hot-dip galvanized pipe, why it is the default choice for electrical conduit, greenhouse frames, HVAC ducting and light structures, and why it must be replaced by hot-dip galvanized or seamless pipe in buried, immersed or pressure applications. This guide sets out the specifications, the comparison data, the ordering checklist and the logistics for Indonesian projects, based on the pipe we manufacture and export from Tianjin, China.

How Pre-Galvanized Pipe Is Made (and Why It Matters)

The production route is straightforward, and each step affects what you receive on site:

1. Zinc coating on coil. Cold-rolled steel coil passes through a continuous hot-dip galvanizing line and receives a controlled zinc or zinc-iron coating. The coating mass is stated as a Z-class: Z60, Z100, Z120, Z180, Z275 (grams per square meter, both surfaces combined).
2. Slitting. The coated coil is slit to the exact strip width needed for the finished tube diameter and wall thickness.
3. Roll forming and ERW welding. The strip is formed into a cylinder and welded longitudinally by high-frequency electric resistance welding (ERW). The weld seam is the only area where coating continuity depends on process control, which is why a proper weld-zone re-coat or post-treatment matters.
4. Sizing, straightening and cutting. Tube is sized to OD and wall tolerance, straightened, then cut to 6 m standard length or to your specified length.

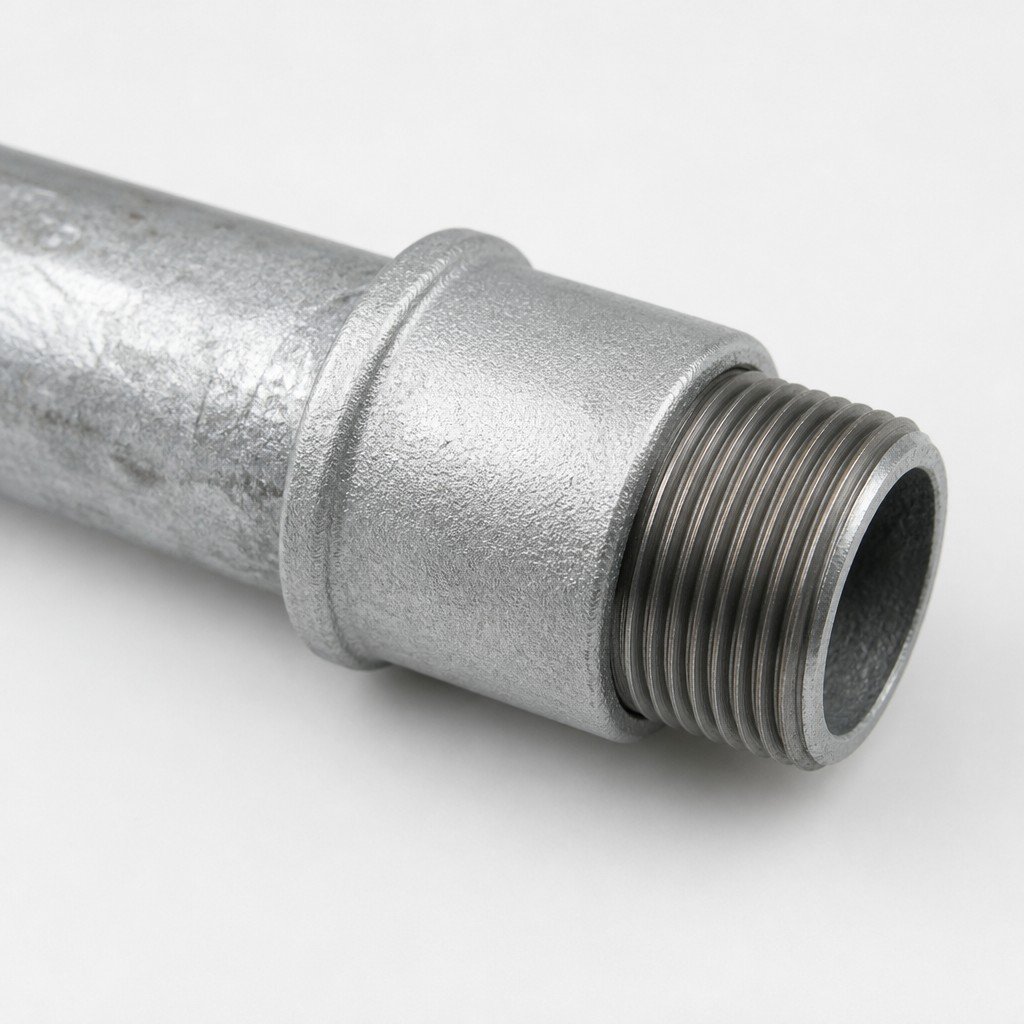

5. End finishing. Plain end, beveled end, threaded and coupled (BS 1387 / EN 10255 threads), or grooved for mechanical couplings.

Because the zinc is applied to flat steel, the coating is uniform and thin — typically 7–20 µm per surface depending on Z-class. Hot-dip galvanizing after fabrication (EN ISO 1461) instead builds 45–85 µm on the finished article, roughly three to eight times thicker. That gap is the whole story of cost, corrosion life and application limits.

Pre-Galvanized vs Hot-Dip Galvanized Pipe: The Comparison Indonesian Buyers Need

These two products look similar in a warehouse and behave very differently on site. The table below is the reference we send with quotations.

Criterion	Pre-galvanized pipe	Hot-dip galvanized pipe
Coating applied	To steel coil before forming (EN 10346)	To finished pipe after fabrication (EN ISO 1461)
Typical coating mass	Z60 – Z275 (60–275 g/m² both sides)	610 g/m² and above (≈ 45–85 µm per surface)
Relative thickness	7–20 µm per surface	45–85 µm per surface — roughly 3–8× thicker
Cost per meter	Lower — less zinc, single pass coating	Higher — additional process, handling and inspection
Corrosion life	Suits indoor, sheltered and light outdoor service; several years to a decade in mild conditions	Suits exposed, industrial and coastal service; multi-decade service life when designed correctly
Coastal / marine exposure	Not recommended unless additional painting or coating is applied	Recommended, with coating mass increased for high-chloride environments
Buried or immersed service	Never — coating is too thin and cannot be inspected or repaired	Yes, with the appropriate coating class and proper treatment of field joints
Pressure lines	Limited to low-pressure water, air and conduit duties	Accepted for water mains and services when the standard allows
Weldability	Easy; thin zinc produces less fume but welding burns coating at the joint	Requires weld-zone coating removal and repair; more fume
Appearance	Smooth, bright, uniform spangle	Thicker, sometimes uneven zinc with visible drain marks
Threading	Threads cut through the coating and need zinc-rich repair paint	Threads cut through a thicker coating and are more tolerant of field conditions
Typical use in Indonesia	Electrical conduit and cable tray, greenhouse and hydroponic frames, HVAC ducting, irrigation, light racking and fencing	Water supply piping, scaffolding, coastal and industrial structures, exposed steelwork
Lead time from our mill	Generally faster — standard sizes often ex-stock	Longer, because of the galvanizing batch schedule

The practical rule we give to Indonesian contractors: use pre-galvanized for dry, sheltered or light-duty service where the budget matters, and step up to hot-dip galvanized wherever the pipe will be buried, immersed, exposed to sea air or asked to carry pressure. If you are comparing against other pipe families instead of coatings, our galvanized vs seamless pipe comparison covers that decision from the other direction.

Specifications We Manufacture

The table below lists the standard ranges we produce and stock. Sizes, wall thickness and zinc classes outside these ranges can usually be rolled to order — send us the schedule and we will confirm.

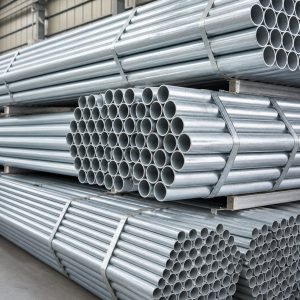

Standards	BS 1387 (light / medium / heavy), EN 10255, ASTM A53 Grade A, EN 10219 for structural tube
Nominal sizes	DN15 – DN150 (1/2″ – 6″); OD 21.3 mm – 168.3 mm
Wall thickness	1.8 mm – 5.0 mm depending on series and duty
Zinc coating	Z60 / Z100 / Z120 / Z180 / Z275 (EN 10346); custom classes on request
Length	6 m standard; 5.8 m, 12 m or cut-to-length to your drawing
End finish	Plain end, beveled end, threaded and coupled (BS 1387 / EN 10255), grooved
Surface	Galvanized as standard; optional chromate passivation or oiling for humid storage

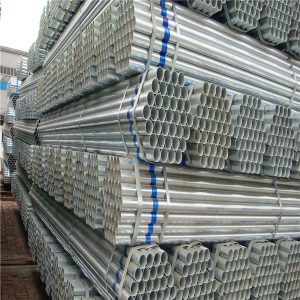

Packing	Hexagonal or square bundles, steel strapping, end caps, bundle tags with heat number and weight
Documentation	Mill Test Certificate EN 10204 3.1 per heat number, packing list, loading photos
Container loading	20′ ≈ 22–24 t for 6 m lengths; 40′ high-cube ≈ 26–28 t; 12 m lengths on flat rack

Where dimensional tolerances are critical — for example when pipe must fit existing clamps, couplings or conveyor frames — our galvanized pipe dimensions and wall thickness guide gives the reference figures, or simply send the drawing and we will match it.

Where Pre-Galvanized Pipe Fits in Indonesian Projects

Applications where it is the right choice

• Electrical conduit and cable tray support. Indoor and sheltered runs where the coating only needs to resist condensation and occasional humidity.
• Greenhouse, hydroponic and shade-net frames. A large and growing segment in Java and Sumatra; light, easy to drill and assemble on site.
• HVAC ducting and ventilation supports. Zinc coating protects the pipe in conditioned spaces without the cost of hot-dip.

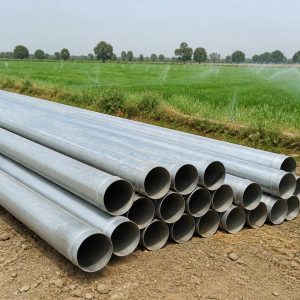

• Irrigation and drainage lines. Low-pressure water distribution where pipe is above ground or in inspectionable trenches.
• Light racking, shelving, fencing and guard rails. Where appearance and cost dominate and mechanical loads are modest.
• Prefabricated structures and partition frames. The pipe arrives cut and coated, ready for bolted assembly.

Applications where you must specify hot-dip galvanized instead

• Pipe to be buried in soil or immersed in water, including seawater and brine lines.
• Coastal and marine structures within salt-spray range, unless the assembly is painted over with a suitable system.
• Pressure piping for water mains, fire systems or process service that specifies a galvanized schedule.
• Scaffolding and load-bearing access structures, where standards such as EN 39 / EN 74 call for heavier coating and proof loading.

For those cases, our hot-dip galvanized steel pipe range includes BS 1387 medium and heavy series, threaded and coupled pipe, and scaffold-grade tube.

How to Specify Pre-Galvanized Pipe Correctly

Most quality disputes in this product line come from an incomplete specification, not from the mill. Include these six items in your enquiry:

1. Standard and series. BS 1387 light, medium or heavy — or ASTM A53 Grade A, or EN 10255. The series sets the wall thickness, and wall thickness sets both pressure capability and weight per meter.
2. Nominal size and OD. State DN and the outside diameter, since local sizing conventions vary between markets.
3. Zinc class. Z60 for indoor conduit, Z120–Z180 for general outdoor shelter, Z275 where extra margin is wanted. The price difference between classes is real but small relative to the cost of premature corrosion.
4. End finish. Plain, beveled, threaded and coupled, or grooved — this affects both the unit price and the site labour required.
5. Length and tolerance. 6 m standard, or cut-to-length. Long lengths above 6 m consume more container volume per tonne and may need flat rack.
6. Certificates and inspection. State whether you require MTC EN 10204 3.1 only, or third-party inspection by SGS, BV or TÜV before loading.

A complete enquiry can be one page. Send it and we return a quotation with weight per meter, bundle configuration, number of containers and lead time — not just a price per tonne.

Price Factors and Cost Comparison

Pre-galvanized pipe is priced per tonne, and the tonne price moves with three inputs: hot-rolled coil (the base steel), zinc (the coating), and freight to your port. Within the same market window, the following factors decide the price you are quoted:

• Zinc class. Moving from Z60 to Z275 adds coating mass, so the price per tonne rises even though the steel is identical.
• Wall thickness and series. Heavy series costs more per tonne because it consumes more steel per meter, but fewer meters are needed for the same duty.
• End finish. Threading and coupling adds machining, coupling steel and labour.
• Order volume. Mixed-size orders of a full container (22–24 t) are the natural unit; project volumes of 100 t and above justify better terms.
• Incoterm and port. FOB Tianjin is the baseline. CFR and CIF to Tanjung Priok, Tanjung Perak, Belawan or Makassar add freight and insurance, which we quote transparently per container.

We deliberately do not publish a fixed price list on this page, because a price that is three months old is worse than no price at all — it wastes your time and ours. For orientation on how the numbers have moved, see our galvanized steel pipe price guide, then ask us for the current quotation for your exact schedule.

Quality Control and Documentation

Every batch of pre-galvanized pipe we ship passes the following checks before it is banded:

• Chemical analysis by spectrometer on each heat, with results recorded against the heat number.
• Mechanical testing — tensile, yield and elongation, plus bend or flattening tests as required by the standard.
• Coating mass verification by gravimetric stripping (EN ISO 1460 method) on samples from each coating class.
• Dimensional inspection of outside diameter, wall thickness, ovality and straightness.
• Hydrostatic or eddy-current testing on pressure-duty tube, at the frequency the standard requires.
• Thread gauging on threaded and coupled products, with couplings supplied to the matching standard.
• Final documentation — Mill Test Certificate EN 10204 3.1, packing list and loading photographs, with third-party inspection available on request.

Our management system is certified to ISO 9001:2015, and we can arrange SGS, BV or TÜV inspection before loading when your project owner or QC consultant requires independent verification.

Shipping and Logistics to Indonesia

We ship pre-galvanized pipe to Tanjung Priok (Jakarta), Tanjung Perak (Surabaya), Belawan (Medan) and Makassar, and can arrange inland delivery through your forwarder. Typical parameters:

• Production: 20–45 days after deposit, depending on size mix, coating class and the galvanizing schedule for hot-dip items in the same order.
• Ocean transit: 7–12 days to the main Indonesian ports, plus port and customs clearance time on arrival.
• Loading: a 20′ container takes about 22–24 t of 6 m pipe; 40′ high-cube about 26–28 t. Longer lengths reduce tonnes per container and may require flat rack.
• Protection in transit: end caps, bundle strapping and, on request, desiccant and lining paper for humid routes to prevent white rust during the voyage.

White rust — the white zinc oxide film that can form on freshly galvanized surfaces in humid conditions — is the most common transit complaint in this product family. We manage it with proper cooling time before packing, dry bundling and ventilation in the container, and we will tell you honestly when a shipment should be scheduled differently to avoid it.

Frequently Asked Questions

Get Your Pre-Galvanized Pipe Quotation

Sino East Steel manufactures and exports pre-galvanized and hot-dip galvanized steel pipe from Tianjin, China, supplying contractors, distributors and fabricators across Indonesia since 2008. Send your pipe schedule — standard, size, wall thickness, zinc class, quantity and destination port — and we will return a complete quotation with weights, container plan and delivery schedule within one working day.
