Galvanized Steel Coils & PPGI for Indonesia: Complete 2026 B2B Buying Guide

Author: Liu Jianhua • Technical Reference: Sino East Steel Export Engineering Dept. • Published: October 2026 • Target Market: Indonesia (Jakarta, Surabaya, Medan, Semarang, Batam)

1. Executive Overview: Importing Galvanized & Pre-Painted Steel Coils into Indonesia

The construction, industrial manufacturing, and agricultural infrastructure sectors across Indonesia are undergoing massive transformation. With major national infrastructure developments spanning Jabodetabek, East Java industrial corridors, and the Nusantara Capital City (IKN) project in East Kalimantan, the demand for high-durability coated flat steel products has surged. Specifically, Hot-Dip Galvanized Steel Coils (GI), 55% Al-Zn Coated Galvalume Coils (GL), and Prepainted Galvanized Iron (PPGI/PPGL) constitute the foundational raw materials for local roll formers, roofing manufacturers (pabrik atap spandek & genteng metal), light steel purlin fabricators (baja ringan C/Z truss), electrical panel enclosures, and automotive air-duct systems.

However, procuring coated steel coils from international steel mills requires Indonesian importers, service centers, and project contractors to navigate strict quality standards, zinc coating weight designations, paint film durability parameters, marine moisture anti-white rust packaging protocols, and customs clearance procedures under the ASEAN-China Free Trade Area (ACFTA Form E). Sesteel (Sino East Steel) provides factory-direct prime coils conforming to JIS G3302, ASTM A653, EN 10346, and SNI 07-2053 standards, offering complete technical transparency, competitive FOB/CFR pricing, and seamless sea freight logistics to all major Indonesian ports.

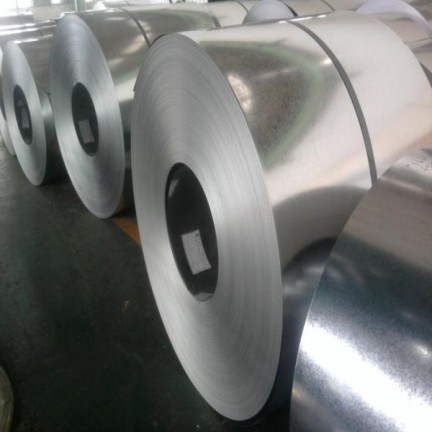

Figure 1: Prime ASTM A653 / JIS G3302 SGCC Hot-Dip Galvanized Steel Coils prepared for export container shipment with anti-rust oiling and steel strapping.

2. Technical Classifications: GI vs. GL vs. PPGI Coils

To ensure optimal cost-performance ratios for specific Indonesian downstream applications, procurement managers must distinguish between the three primary coated flat steel categories:

• Hot-Dip Galvanized Steel Coils (GI / HDG): Substrate steel coated with a pure zinc layer (minimum 99% Zn). Standard coating weights range from commercial Z60 (60 g/m² total both sides) up to heavy-duty Z275 (275 g/m² or G90). Available in zero spangle (skin passed for painting/automotive), minimum spangle, and regular spangle (classic crystalline aesthetic for ventilation ducting and general construction).
• 55% Al-Zn Coated Steel Coils (Galvalume / Aluzinc / GL): Substrate coated with an alloy composed of 55% Aluminum, 43.4% Zinc, and 1.6% Silicon (ASTM A792 / JIS G3321). Galvalume offers 3 to 6 times the atmospheric corrosion resistance of standard GI in coastal and tropical environments, making it the dominant material for atap spandek and baja ringan light gauge framing. Standard coating weights include AZ70, AZ100, and AZ150.
• Prepainted Galvanized / Galvalume Steel Coils (PPGI / PPGL): Continuous coil coating line process where the GI or GL substrate undergoes chemical cleaning, conversion coating, primer application, and topcoat curing (JIS G3312 / ASTM A755). Offers superior color aesthetics, UV resistance, and chemical protection for modern industrial roofing, wall cladding, cold storage insulated sandwich panels (EPS/PIR/Rockwool), and appliance manufacturing.

Figure 2: Color Coated PPGI Steel Coils (RAL Color System: Blue, Red, Green, White) ready for export to Surabaya and Jakarta.

3. Paint Systems & Film Durability for Indonesia’s Tropical Climate

Indonesia’s equatorial maritime climate exhibits year-round ambient temperatures between 26°C and 34°C, relative humidity levels often exceeding 85%, high solar Ultraviolet (UV) radiation indices, and heavy saline mist in coastal port zones. Standard low-grade paint coatings degrade rapidly under these conditions, causing premature chalking, blistering, and color fading within 18 to 24 months.

Sino East Steel supplies PPGI/PPGL coils equipped with advanced continuous paint resin formulations tailored to specific outdoor exposure environments:

• Regular Modified Polyester (PE): Most economical choice for standard interior applications, commercial warehouses, and general roofing. Features a 15–20 μm topcoat with 5–8 μm back primer. Color retention lifespan: 7 to 10 years in non-marine inland zones.
• High-Durability Polyester (HDP / High Polymer): Engineered with high molecular weight resin matrix delivering superior UV resistance and hydrolytic stability. Ideal for Indonesian industrial parks, textile factories, and agricultural chicken coops exposed to high ammonia/humidity. Expected service life: 12 to 15 years.
• Silicon Modified Polyester (SMP): Formulated with silicone resin integration, offering extreme hardness, abrasion resistance, and stain resistance for coastal roof profiling. Service life: 15 years.
• Polyvinylidene Fluoride (PVDF / Kynar 500 ≥70%): The ultimate architectural coating system providing unparalleled resistance to UV degradation, chemical pollution, and salt spray corrosion. Recommended for premium commercial facades, airport terminals, power plants, and seaside industrial facilities. Service life: 20 to 25+ years without chalking or fading.

Figure 3: Red RAL 3000 / 3005 PPGI Coil with high-gloss protective PE topcoat for genteng metal forming.

4. Dimensional Tolerances & Roll Forming Machine Compatibility

When feeding steel coils into continuous high-speed roll forming machines, thickness deviations, camber, edge wave, and coil crown can cause catastrophic jamming, rib wrinkling, or dimension out-of-squareness. Sesteel ensures strict mill quality control on all mechanical and physical parameters:

• Thickness Range: 0.12 mm to 2.0 mm (Ultra-thin 0.12–0.18mm for export roofing; 0.20–0.45mm for standard spandek; 0.50–1.20mm for structural framing). Thickness tolerance strictly held within ±0.02 mm.
• Width Range: 600 mm to 1250 mm (Standard widths: 914mm, 1000mm, 1200mm, 1219mm, 1250mm; precision slitting down to 50mm strips available).
• Coil Weight: 3.0 MT to 8.0 MT per coil (standard 4–6 MT optimal for Indonesian overhead factory cranes and uncoiler mandrels).
• Inside Diameter (ID): Standard 508 mm (20 inch) or 610 mm (24 inch) with heavy paper sleeve or steel sleeve insert.
• Surface Finish & Treatments: Chromated / Oiled / Anti-fingerprint (AFP – clear or tinted blue/green) / Chemical Passivation to prevent transit moisture white rust (karat putih).

Figure 4: Heavy-duty export packaging: waterproof kraft paper, inner plastic barrier, galvanized iron side guards, outer circumference metal cover, and radial steel strapping.

5. Sea Freight Packaging Standards: Preventing White Rust During Tropical Ocean Transit

The transit route from Northern China ports (Tianjin Xingang, Qingdao, Shanghai) across the South China Sea, Java Sea, and Malacca Strait exposes steel shipments to extreme humidity gradients and condensation within container holds (the “container rain” phenomenon). Unprotected zinc surfaces react rapidly with trapped moisture and carbon dioxide to form basic zinc carbonate, commonly known as white rust (wet storage stain).

To ensure 100% rust-free delivery to Indonesian warehouses, Sino East Steel enforces standard mill export packaging complying with international marine cargo guidelines:

1. Triple Barrier Wrapping: Inner layer of heavy VCI (Vapor Corrosion Inhibitor) waterproof paper + middle layer of HDPE plastic film wrap + outer heavy-duty corrugated galvanized iron protective jacket.
2. Edge & Corner Guards: Inner and outer galvanized steel corner protection rings prevent coil lip bruising during forklift and crane handling.
3. Strapping Configuration: Minimum 3 circumferential steel bands + 4 radial (eye-through) high-tensile steel straps securely locked.
4. Container Lashing & Dunnage: Coils loaded in 20ft heavy-duty containers (max 26–28 MT per container) secured on heavy hardwood timber saddles with steel chocks and cross-lashing wire ropes, or shipped via breakbulk vessel with under-deck stowage.
5. Desiccant Bags: High-absorption calcium chloride desiccant bags placed inside each container to absorb internal condensation throughout the 12–18 day voyage.

Figure 5: Precision slit galvanized steel coils for continuous automated C/Z channel and light gauge steel purlin rolling lines.

6. Indonesian Customs Clearance & ACFTA Form E Tariff Exemption

Importing steel coils into Indonesia requires adherence to the Ministry of Trade (Kementerian Perdagangan) regulations and Ministry of Industry (Kementerian Perindustrian) technical approvals (such as Persetujuan Impor – PI Besi Baja and Laporan Surveyor – LS).

Crucially, under the ASEAN-China Free Trade Agreement (ACFTA), Indonesian importers holding a valid NIB (Nomor Induk Berusaha) and API-U/API-P (Angka Pengenal Importir) can claim 0% Preferential Import Duty by presenting an official Certificate of Origin Form E issued directly by the China Council for the Promotion of International Trade (CCPIT) or China Customs.

7. Quality Assurance & Mill Test Certification (EN 10204 3.1)

Every production heat of galvanized and prepainted steel coil from Sino East Steel is subjected to comprehensive laboratory testing prior to dispatch. Each shipment is accompanied by an authentic Mill Test Certificate (MTC) conforming to EN 10204 Type 3.1, detailing:

• Chemical Heat Composition: Carbon (C), Manganese (Mn), Phosphorus (P), Sulfur (S), Silicon (Si), and Aluminum (Al) percentages confirming strict metallurgical purity.
• Mechanical Testing: Yield Strength ($R_{eH}$ or $R_{p0.2}$), Tensile Strength ($R_m$), Elongation percentage ($A_{80mm}$), and 180-degree bend test without coating flaking.
• Coating Mass Verification: Triple-spot and single-spot zinc/aluzinc coating weight measurements (g/m²) verified via gravimetric chemical dissolution or X-ray fluorescence spectrometry.
• Paint Quality Testing (PPGI): Paint film thickness gauge (μm), Pencil Hardness (≥ 2H), Cross-Hatch Adhesion Test (Grade 0 / 100% pass), T-Bend Flexibility (0T–2T without cracking), MEK Solvent Rub Test (≥ 100 double rubs), and Neutral Salt Spray Test (≥ 500–1000 hours).

8. Frequently Asked Questions (FAQ) • B2B Steel Coil Procurement
